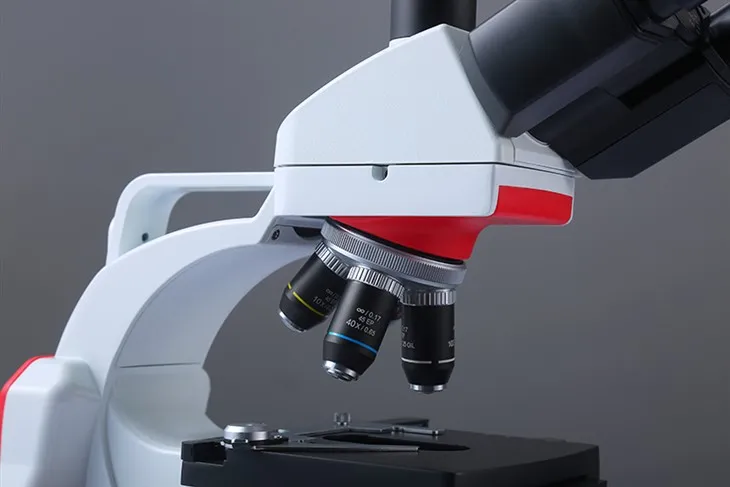

BMC100 Series kev ua haujlwm biology lab digital microscope
Khoom npe: Biology Lab Digital Microscope
BMC100 series kuaj lub tshuab kuaj kab mob, ergonomic tsim, 360 degree kev sib hloov ntawm lub taub hau soj ntsuam, ECO lub cev paub txog kev tiv thaiv ib puag ncig tsim, kev ua haujlwm zoo thiab tus nqi. Nrog ntse LCD cov duab qhov rais, nws tuaj yeem tso saib qhov ci ntawm sab saud thiab sab hauv lub teeb, roj teeb lub zog, lub teeb ci sab saud thiab qis dua, lub xeev them nyiaj, nrog ACT xim kub hloov ua haujlwm, ECO ntse sensing muaj nuj nqi.
Khoom nta:
● Ergonomic tsim, ib txhij pom kev pom thiab cov duab digital ntawm tib lub latitude
● ACT xim kub hloov ua haujlwm
● ECO ntse sensing muaj nuj nqi
● EDF qhov tob ntawm daim teb txuas ntxiv thiab cov duab stitching muaj nuj nqi
● Ntse LCD cov duab qhov rais
● Nws tuaj yeem soj ntsuam cov khoom kuaj thiab muaj kev pabcuam teeb pom kev zoo
Optical system: infinity kho qhov muag qhov system, tsom qhov deb ntawm 45mm, nrog lub ntsej muag pom kev ua haujlwm. Kev soj ntsuam lub lens chim: peb lub qhov muag, 30 inclination, 360 rotation, sib txawv qhov muag taw tes qhov siab.
Eyepiece: WF10X / 18mm (ib qho uas muaj lub pointer micrometer) (yeem).
Lub hom phiaj lens: PH infinity achromatic lub hom phiaj lens, suav nrog 4X, 10X, 40X (elastic) thiab 100X (caij nplooj ntoos hlav, muaj ntxhiab asphalt). Converter: Plaub-qhov converter. Theem: Ob chav lawj tshuab txav platform nrog cov cuab yeej ua haujlwm theem, kho qhov txwv thiab tiv thaiv extrusion slicing muaj nuj nqi, nrog rau stroke ntawm 76x52mm thiab ntev ntawm 140x140mm.
Focusing mechanism: ntxhib micro-axis, adjustable nruj, coarse motion stroke: 28mm, zoo motion precision: 0.002 mm. Condenser: Abbe condenser, NA=1.25, aperture variable, adjustable center, handwheel lifting.
Collector: Critical illumination (Cora illumination), nrog adjustable teb nres.
Upper lub teeb ci: USB mos tube, 360 tsis muaj lub kaum sab xis tuag.
Lub teeb qis dua: 3W xim kub hloov tau LED, qhov muag teeb pom kev zoo, kho qhov kaj thiab xim kub, thiab tuaj yeem ntsaws rau sab xis.
Cov cuab yeej ntse induction: 30-feeb qeeb induction kaw.
Photoelectric intelligent zaub screen: LED ntse qhia txog kev ua haujlwm ntawm lub teeb sab saud thiab qis thiab roj teeb lub zog.
Fais fab mov: sab nraud tswj fais fab adapter DC 5V / 2A, built-in rechargeable roj teeb 3.7V-1600mAh.
Specification:
|
Qauv nab npawb |
BMC{0}}A2 |
BMC{0}}A3 |
|
Tag nrho magnification |
40X-1000X |
|
|
Saib Lub Taub Hau |
Binocular, 30 degree inclined, 360 degree tig tau |
Trinocular, 30 degree inclined, 360 degree tig tau |
|
Qhov muag muag |
WF10X/18mm |
|
|
Lub hom phiaj |
195 achromatic lub hom phiaj 4X, 10X, 40X(S), 100X(S, O) |
|
|
Nosepiece |
Quadruple |
|
|
Focusing System |
Coarse thiab zoo txav coaxial, adjustable elasticity, |
|
|
Theem |
Curved ob txheej txheej tshuab, 140x140mm, stroke 76x52mm |
|
|
Condenser |
Abbe condenser NA=1.25, iris diaphragm, nruab nrab adjustable, handwheel lifting |
|
|
Sau daim iav |
Tseem ceeb illumination (Kohler illumination), adjustable teb diaphragm |
|
|
Hauv qab Teeb |
3W xim kub adjustable LED, compound qhov muag teeb pom kev zoo, brightness adjustable, xim kub adjustable, sab xis nkag thiab tshem tawm |
|
|
Kev txawj ntse ntaus ntawv |
30 feeb ncua induction kaw |
|
|
Photoelectric Smart Display |
LED ntse zaub ntawm cov xwm txheej ua haujlwm ntawm lub teeb nce thiab nqis thiab roj teeb lub zog |
|
|
Fais fab mov |
Sab nraud tswj fais fab adapter DC 5V / 2A, Rechargeable roj teeb 3.7V-1600mAh |
|
|
Ntim |
Ua npuas ncauj + Carton |
|
Khoom Paub meej:
● Binocular thiab trinocular observation raj
Adjustable raj, 30 degree inclined, 360 degree rotatable
● Achromatic lub hom phiaj lens
4X, 10X, 40X (caij nplooj ntoos hlav), 100X (caij nplooj ntoos hlav, roj)
● Coaxial ntxhib thiab zoo txav
Coarse txav stroke: 28mm, zoo txav raug: 0.002mm
● Teeb pom kev zoo
Sab saum toj lub teeb: USB hloov tau lub teeb, 360 degree teeb pom kev zoo yam tsis muaj qhov muag tsis pom
Lub teeb ci hauv qab: adjustable xim kub, 3W LED teeb
● Sab-mounted tub rau khoom hom teeb lub thawv
● Intelligent LCD cov zaub qhov rais
Lub ECO ntse sensor muaj peev xwm tuaj yeem tua lub zog tom qab tus neeg siv tawm rau 30 feeb
ACT xim kub hloov ua haujlwm, tuaj yeem kho lub teeb ci ci raws li tus neeg siv xav tau
